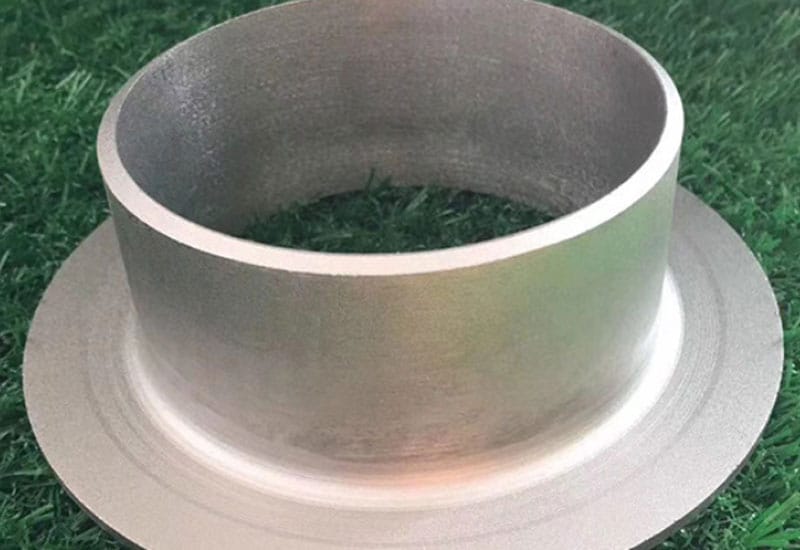

Titanium Stub Ends are used with loose-flange or lap-joint flanges to create detachable pipe connections in titanium piping systems. They provide a reliable transition between titanium pipes, flanges, and equipment where corrosion resistance and sealing stability are important.
Made from pure titanium or titanium alloy, these fittings are suitable for chemical processing, seawater systems, pharmaceutical equipment, aerospace pipelines, and other demanding environments.
Key Features
Titanium pipe connection fitting for detachable joints
Suitable for loose flange and lap joint flange systems
Good corrosion resistance in chemical and seawater conditions
Custom DN size, wall thickness, and flange height available
Precision-machined sealing surface for better fit
Lightweight compared with stainless steel pipe fittings
Drawing-based production available
Submit your project details quickly and let our professional team provide tailored steel structure solutions
Titanium Stub Ends are pipe connection fittings used in titanium piping systems together with loose flanges or lap joint flanges. They are commonly used where the pipe connection needs to be detachable, corrosion-resistant, and stable under demanding working conditions.
Instead of using a fixed welded flange, a titanium stub end allows the flange to rotate freely before tightening. This makes installation easier, especially in pipe systems where bolt-hole alignment and maintenance access are important.
| Item | Description |
|---|---|
| Product Name | Titanium Stub Ends |
| Material | TA1, TA2, TA3, TC4, TA9, TA10, Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 |
| Size Range | DN10 – DN2000 |
| Thickness | 1.0mm – 30mm |
| Flange Height | 5mm – 50mm |
| Standards | GB/T 12459, ASTM B366, ASME B16.5, ASME B16.47, JIS B2220 |
| Surface Finish | Pickled, passivated, machined, or customized |
| Custom Options | Size, thickness, flange height, material grade, sealing face |
| Application | Chemical, marine, pharmaceutical, aerospace, deep-sea, industrial pipe systems |
Designed for Titanium Pipe Systems
Titanium stub ends are used as transition fittings between titanium pipes and flange connections, helping create detachable and maintainable piping systems.
Reliable Sealing Surface
The flanged end can be machined to ensure better contact with the matching flange and gasket, supporting stable sealing performance during installation.
Corrosion-Resistant Material
Titanium is suitable for seawater, chloride media, acids, alkalis, and many corrosive industrial environments.
Easier Installation and Maintenance
When used with loose flanges, the flange can rotate before tightening, which helps improve bolt-hole alignment and reduces installation difficulty.
Custom Size Support
DN size, wall thickness, flange height, material grade, and surface finish can be produced according to drawings or project requirements.
Titanium Stub Ends can be produced through titanium blank preparation, forging or forming, CNC machining, flanging, surface treatment, dimensional inspection, and packaging.
Inspection can include material grade, DN size, wall thickness, flange height, sealing surface, appearance, and tolerance. Material certificates and inspection reports can be provided according to order requirements.
What are Titanium Stub Ends used for?
They are used with loose flanges or lap joint flanges to create detachable connections in titanium pipe systems.
What materials are available?
Common options include TA1, TA2, TA3, TC4, TA9, TA10, Gr1, Gr2, Gr5, Gr7, Gr9, and Gr12.
What size range can you supply?
Available sizes range from DN10 to DN2000, with custom thickness and flange height options.
Can Titanium Stub Ends be made according to drawings?
Yes. Size, wall thickness, flange height, sealing surface, and material grade can be customized.
What information is needed for a quote?
Please provide material grade, DN size, wall thickness, flange height, standard, quantity, and application environment.
