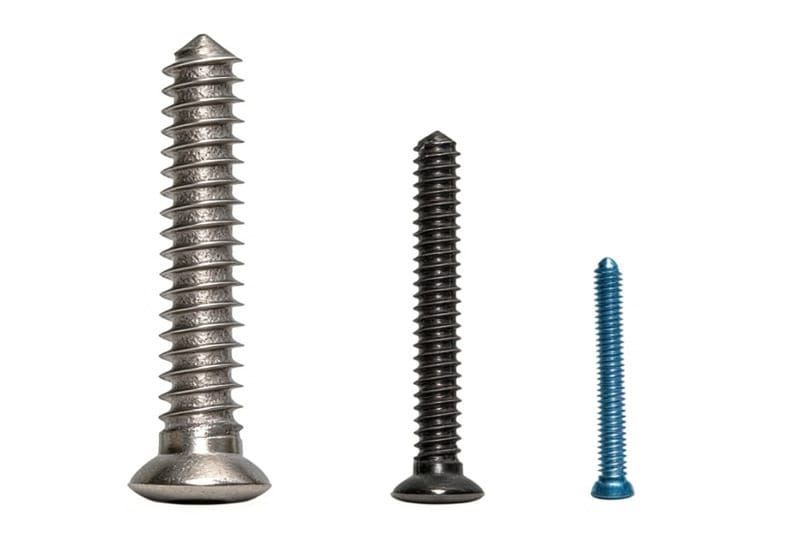

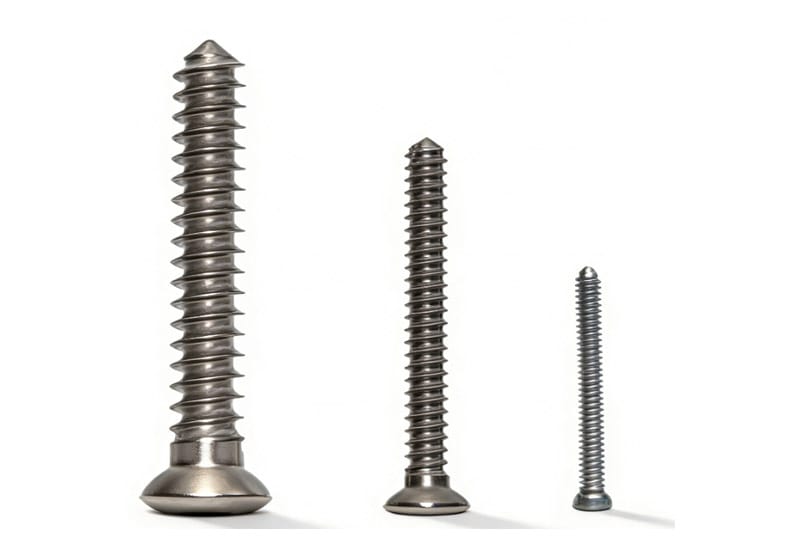

Titanium Cortical Bone Screw is designed for orthopedic fixation applications that require stable screw connection, accurate dimensions, and reliable titanium material performance. It is suitable for trauma orthopedics, joint surgery, hand and foot surgery, maxillofacial surgery, and spinal surgery.
Made from medical-grade titanium or titanium alloy, the screw can be supplied in different diameters, lengths, thread types, and head designs according to customer requirements.
Key Features
Medical-grade titanium and titanium alloy materials
Available in self-tapping and non-self-tapping types
Multiple diameter and length options
Hexagon, cross, and countersunk head designs available
Smooth surface finish and accurate thread control
Custom sizes available according to drawings
OEM and medical implant supply support
Submit your project details quickly and let our professional team provide tailored steel structure solutions
Titanium Cortical Bone Screw is an orthopedic implant fastener used for cortical bone fixation and fracture fixation systems. It is manufactured from medical-grade titanium or titanium alloy and can be customized according to diameter, length, thread type, head type, and surface finish requirements.
With good corrosion resistance, lightweight performance, and stable mechanical strength, titanium cortical screws are suitable for orthopedic implant suppliers, medical device manufacturers, and OEM customization projects.
| Titanium Cortical Bone Screw | |
| Material | Chinese National Standard: Medical-grade titanium TA2, TC4, TC4 ELI, etc. (Gr23) American Standard: Gr2, Gr3/Gr4, Gr23, etc. |
| Size | Customizable to surgical needs |
| Implementation Standards | GB/T 13810-2007， GB/T 16598-2013，ASTM B381， ASTM F67 |
| Use | Trauma Orthopedics, Joint Surgery, Hand/Foot Surgery, Maxillofacial Surgery, Spinal Surgery |
| Production process | Medical-grade titanium material is selected → after inspection and cutting → vacuum forging → heat treatment → precision CNC machining and thread forming → medical-grade surface treatment → full inspection, cleaning and sterilization. |
| Minimum order quantity | According to your requirements |
| Other products | Self-tapping cortical screws, non-self-tapping cortical screws, custom-made non-standard screws（Customizable to surgical needs.） |
| Item No. | Diameter | Length Range | Common Size Combination | Thread Type | Head Type |
| 1 | Φ2.0 mm (2.0 mm) | 6 mm – 30 mm | 2.0 × 6mm, 2.0 × 8mm, 2.0 × 10mm – 2.0 × 30mm | Self-tapping / Non-self-tapping | Hexagon, Cross, Countersunk |
| 2 | Φ2.7 mm (2.7 mm) | 8 mm – 40 mm | 2.7 × 8mm, 2.7 × 10mm, 2.7 × 12mm – 2.7 × 40mm | Self-tapping / Non-self-tapping | Hexagon, Cross, Countersunk |
| 3 | Φ3.5 mm (3.5 mm) | 10 mm – 50 mm | 3.5 × 10mm, 3.5 × 12mm, 3.5 × 14mm – 3.5 × 50mm | Self-tapping / Non-self-tapping | Hexagon, Cross, Countersunk |
| 4 | Φ4.0 mm (4.0 mm) | 12 mm – 60 mm | 4.0 × 12mm, 4.0 × 14mm, 4.0 × 16mm – 4.0 × 60mm | Self-tapping / Non-self-tapping | Hexagon, Cross, Countersunk |
| 5 | Φ4.5 mm (4.5 mm) | 14 mm – 80 mm | 4.5 × 14mm, 4.5 × 16mm, 4.5 × 18mm – 4.5 × 80mm | Self-tapping / Non-self-tapping | Hexagon, Cross, Countersunk |
| 6 | Φ5.0 mm (5.0 mm) | 16 mm – 100 mm | 5.0 × 16mm, 5.0 × 18mm, 5.0 × 20mm – 5.0 × 100mm | Self-tapping / Non-self-tapping | Hexagon, Cross, Countersunk |
| 7 | Φ6.5 mm (6.5 mm) | 20 mm – 120 mm | 6.5 × 20mm, 6.5 × 25mm, 6.5 × 30mm – 6.5 × 120mm | Self-tapping / Non-self-tapping | Hexagon, Cross, Countersunk |
Stable Fixation Design
The cortical screw structure is suitable for orthopedic fixation systems that require reliable screw engagement and stable mechanical support.
Medical Titanium Materials
The screw can be made from TA2, TC4, TC4 ELI, Gr2, Gr23, and other titanium materials according to project requirements.
Accurate Thread Processing
Thread type, pitch, diameter, and head design can be controlled according to drawings to support stable assembly with compatible plates and instruments.
Flexible Customization
Diameter, length, head type, thread type, surface finish, and packaging can be customized for different medical device systems.
OEM Supply Support
We support OEM production for titanium orthopedic screws and related implant components based on drawings, samples, or technical specifications.
Titanium cortical bone screws are produced through controlled titanium material selection, precision machining, thread forming, surface finishing, inspection, and packaging. Key dimensions, thread quality, head structure, surface condition, and material grade can be checked before shipment.
Material certificates, inspection reports, and customized documents can be provided according to order requirements.
We can customize titanium cortical bone screws according to customer requirements, including material grade, diameter, length, thread type, head type, surface finish, packaging, and order quantity.
For quotation, please provide material grade, screw diameter, length, thread type, head type, quantity, drawings, surface requirements, and any required standards.
Can Titanium Cortical Bone Screws be customized?
Yes. Diameter, length, thread type, head type, material grade, and surface finish can be customized.
What diameters are available?
Common diameters range from Φ2.0 mm to Φ6.5 mm. Custom sizes are also available.
What materials are available?
Common options include TA2, TC4, TC4 ELI, Gr2, Gr3/Gr4, and Gr23.
Do you provide self-tapping screws?
Yes. Both self-tapping and non-self-tapping cortical screws are available.
What information is needed for a quote?
Please provide drawings, material grade, diameter, length, thread type, head type, quantity, and required standards.
Need Custom Titanium Cortical Bone Screws?
Send us your drawings, specifications, or sample requirements. We can provide suitable titanium material selection, production evaluation, and customized orthopedic screw manufacturing support.
